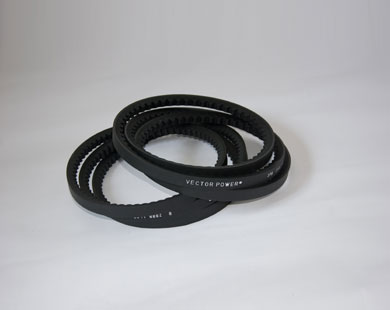

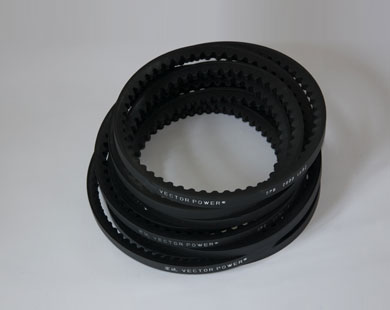

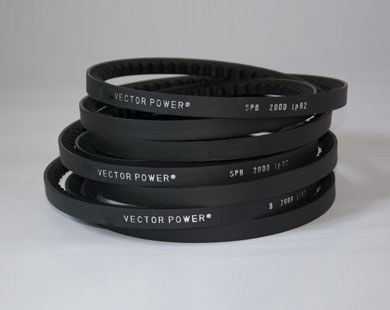

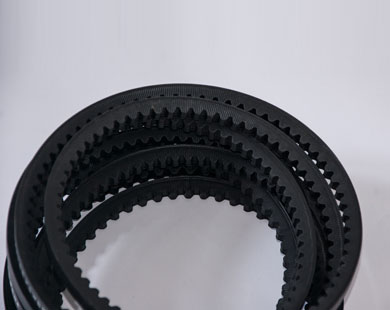

Wedge V belt(belt teeth)

  • Model:Wedge V belt(belt teeth)
  • Feature:

    Environmental protection: the material of the product is thermoplastic elastomer, with the characteristics of wear-resistance, acid and alkali resistance, oil resistance, and corrosion resistance. The finished product does not need die sinking or sulfuration. It has advantages such as environmental friendly and no foreign flavor.Full-automatic production: use teeth structure with good flexibility, fast heat dissipation, and stable operation. The product is produced by full-automatic equipment and the length can be as accurate as 1mm. Besides, it can produce any-lengthhigh-strength polyester rope. High-strength polyester rope: the product rope uses high-quality rigid rope with the following advantages: tensile resistance is strong; belt is not easy to draw out; the diameter of the whole rope is uniform and shape is nice. Wedge Belt’s characteristics:

  • Update:2013-5-2
  • Unit:Shanghai Vector Power Co., Ltd
TYPE Sectional dimension
(W*H)
Standard length
(mm)

Pitch diameter of

 smallest pulley


Section schematic diagram
3V 9*8  LA(outside length)

63
5V 15*13 140
8V 25*23 335
SPZ 9.7*8



LP(pitch length)


63
SPA 12.7*10 90
 SPB 16.3*13  140
 SPC  22*18  224
